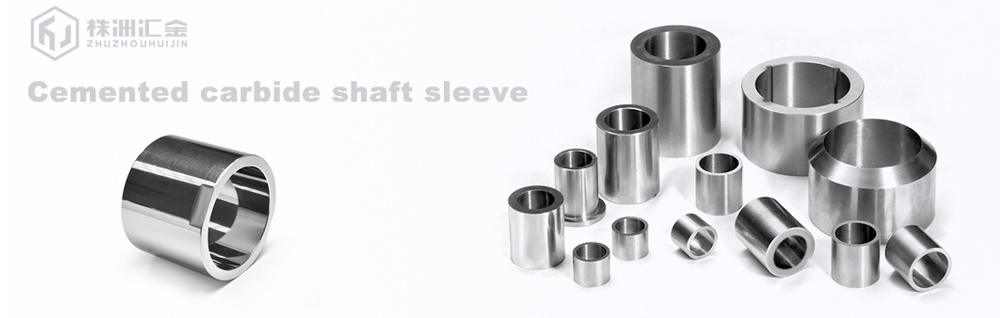

tungsten carbide sleeve used as hydraulic motor pump sleeve Micron fine grain Cemented carbide shaft sleeve
Key words:
hard metal
Classification:
Bushing
- 产品描述
-
- Commodity name: tungsten carbide sleeve used as hydraulic motor pump sleeve Micron fine grain Cemented carbide shaft sleeve
- Commodity ID: 1310963854338576384

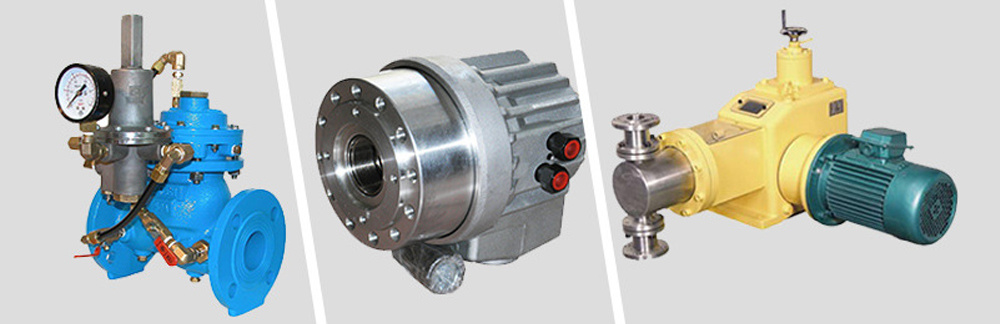

ApplicationField : · TungstenCarbideBushesareoftenusedinwaterpump,oilpumpandotherpumps,especiallyusedforhighpressureorcorrosionresistancepumps,flowcontrol, · It is widely used in Oil Refineries, petro
Tungsten carbide material features extreme wear resistance and hardness. The material is typically forged by the reaction of tungsten (W) metal and carbon (C) at 1400 to 2000°C. The result is a grey powder that can be pressed and formed into virtually any shape. When processing the powder into a shape, manufacturers use either a nickel or cobalt-bonding agent. Several chemical compositions can be used to provide better properties for varying applications.Tungsten carbide bushing applications is wide, which is a device to protect a class of components. It is in the actual work and the role and purpose of its application environment have a great relationship. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.
Product advantage:
1.Used for water pump, oil pump and other pumps, especially used for high pressure or corrosion resistance pumps.
2.Have a good wear resistance and corrosion resistance.
3.Keeping operation precision, prolong the lifetime of rolling axletree.
4.Good materials, perfect performance, high machining accuracy,has high reputation all over the world.
5. Various types and grades, supplied as required.

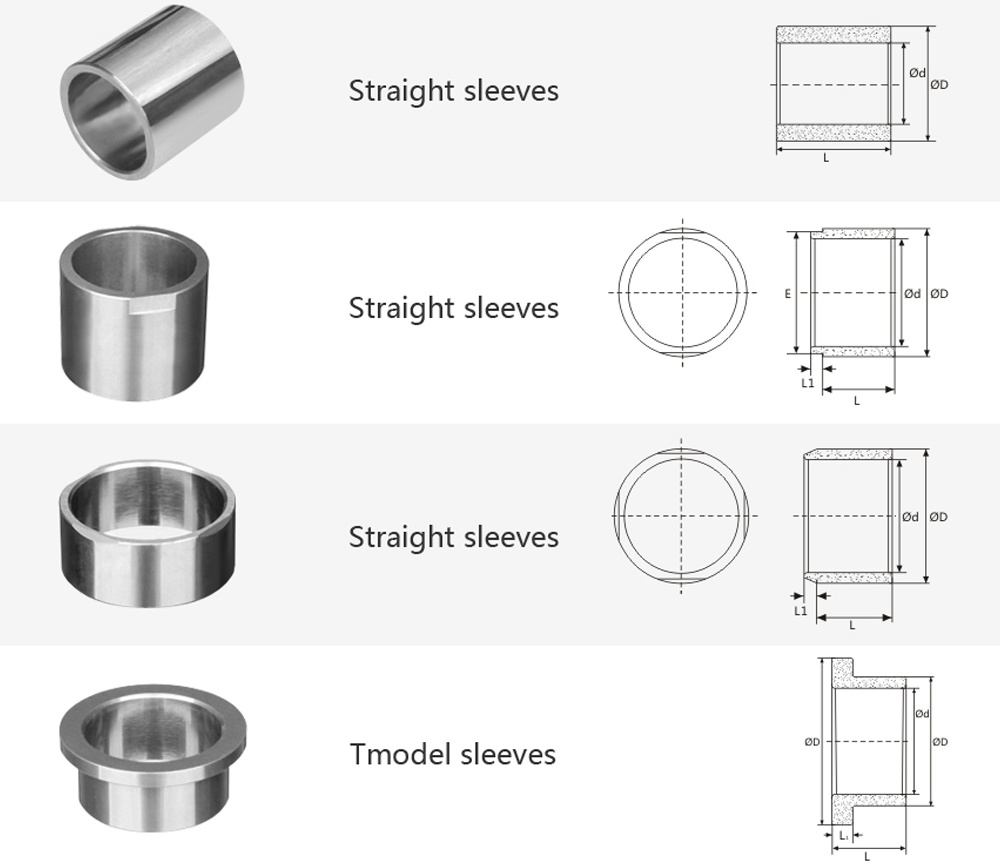

Dimensions (mm)
ØD
Ød
L
10~450
3~360
8~260
Technical parameters：
surface
roughness
roundness
（o）
parallelism
（∥）
perpendicularity
（⊥）
concentricity
（◎）
circular run-out total run-out （m m） （m m） （m m） （m m） （m m） （m m） 3.2-0.1 ≤0.01 0.01-0.02 ≤0.01 ≤0.025 ≤0.025 ≤0.025 grade
density
hardness
TRS
performance
field of application
(g/cm3)
(HRA)
≥N/mm2
YG6
14.7-15.0
≥90.0
1900
Excellent wear-resistance, good strength and impact hardness
suitable for positioning or protecting the shaft on the rotating shaft, and
prevents the shaft from wearing
YG8
14.5-14.9
≥89.0
2000
excellent wear-resistance, good strength and impact hardness
YWN6
14.7-14.9
≥90.0
1760
good wear-resistance, corrosion-resistance
apply in environment which is oil,sewage,acid and alkali, resin, Liquefied hydrocarbon，Solid particle
YWN8
14.4-14.8
≥89.0
1800
good wear-resistance, corrosion-resistance

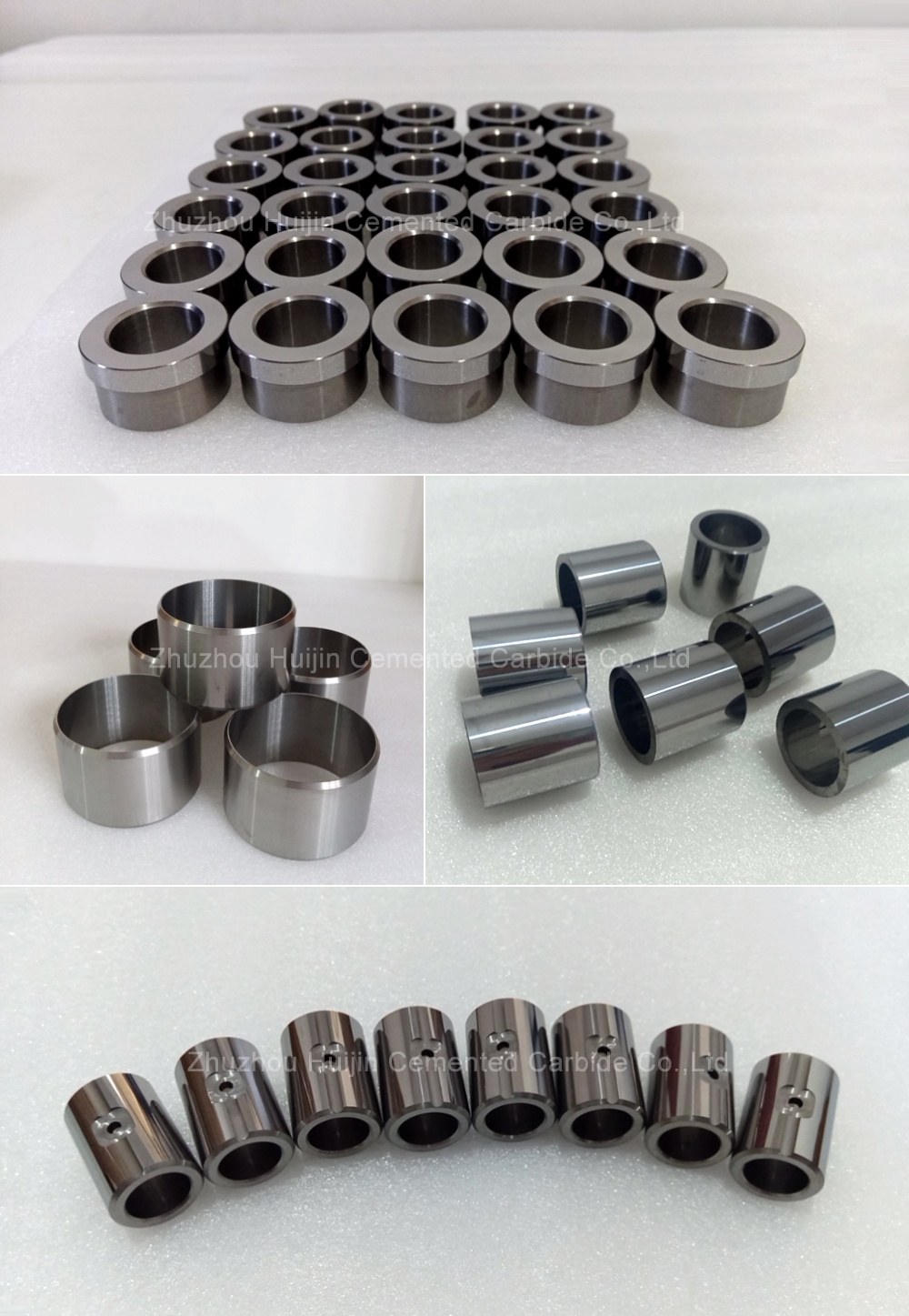

product applicationPrecision wear-resistant tungsten carbide sleeveTungsten carbide bushing production and processing of high-strength, can withstand prolonged load, with high chemical stability,
alkali, alcohol, ether, hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.

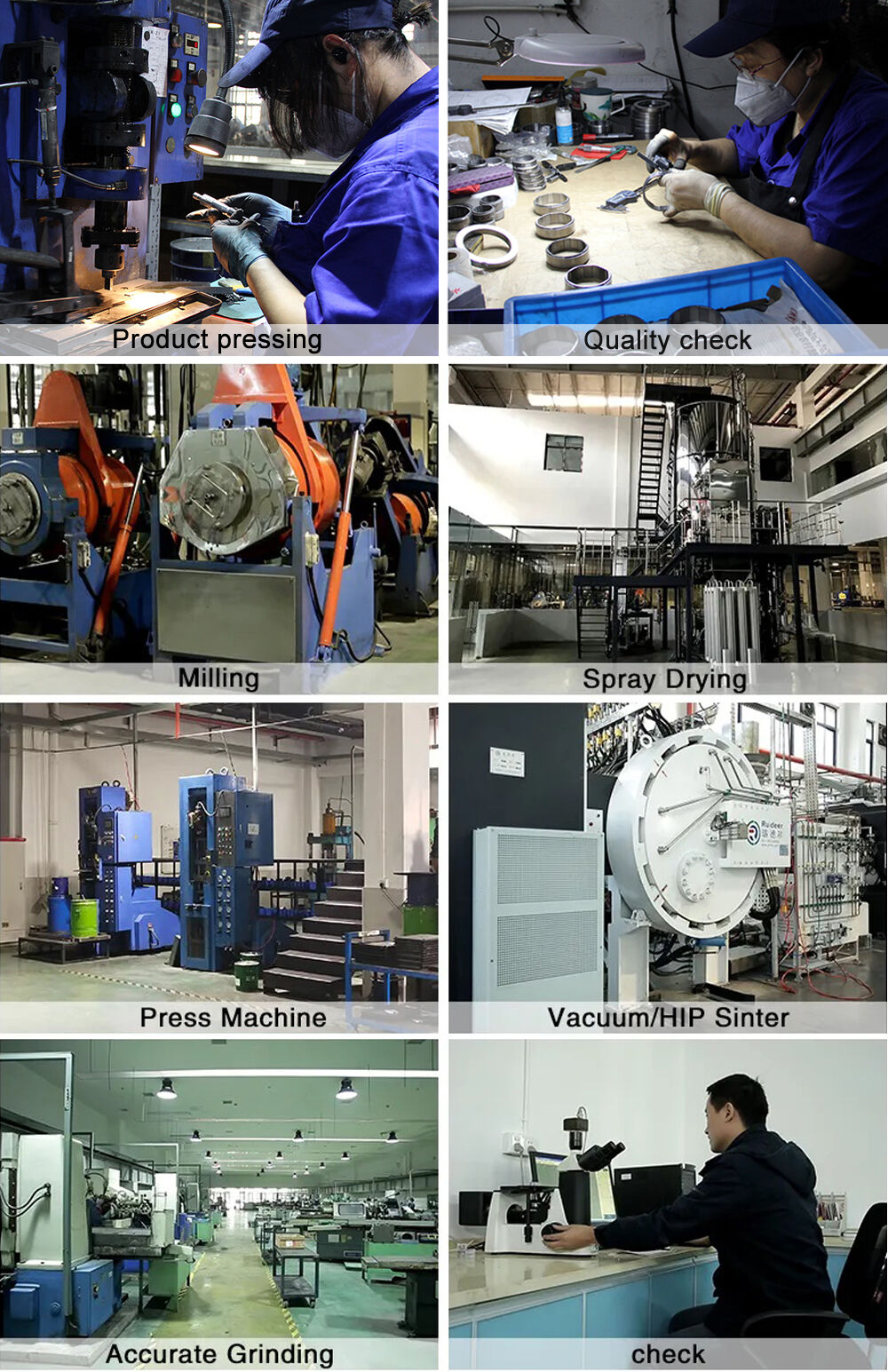

Production process and finishing of cemented carbide:1. 100% fresh material with strict inspection.2.Preparative mixture： The raw materials would be fully blended together with ball milling machine, makes the powder ingredients homogenize,to obtain corresponding mixture particle size .3.Spray drying：With high purity nitrogen protection in a fully enclosed environment, the mixture oxygen is effectively reduced, material purityis effectively guaranteed, material dirty are prevented. and the particles are fine and uniform with good fluidity to ensure dimensionsfluctuation small and better strength.4.CIP： Using isostatic press, the defects are effectively stopped. Offering a good environment to get the blanks with uniform pressed density.5. Degumming and pre-burning semi-inspection processing6. HIP：The maximum sintering pressure can reach 100kg, eliminated the internal voids of alloy body effectively and get the high hardness andhigh strength carbide blank with good densification.7. Blank product inspection, processing
