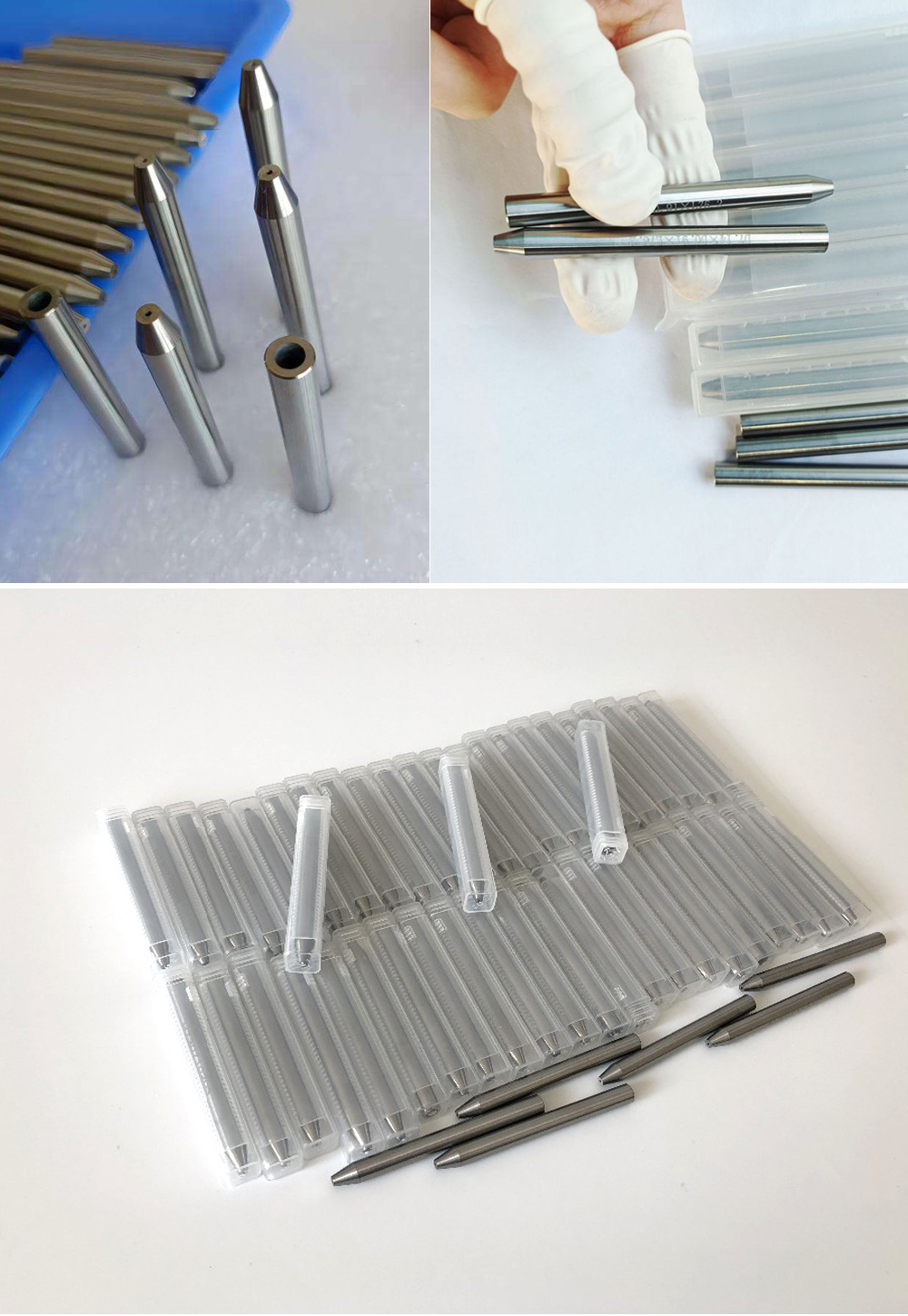

Tungsten carbide water jet nozzles
Key words:
hard metal
Classification:
Nozzle
- 产品描述
-
- Commodity name: Tungsten carbide water jet nozzles
- Commodity ID: 1310963845975134208
ProductdetailsTungstencarbidewaterjetnozzles Ourtungstencarbidewaterjetnozzlesinnertubeishighfinishblasthole,andtheuseofouruniquepolishingtechnologyporestokeepthehardnessofinsidewaterjetnozzlesissameastheoutsideofwaterjetnozzles. Comparingtoothercommontungstenwaterjetnozzles,higherhardness,higherdensity,higherwearresistance,higherstability.Consistentandlongservicelife. Somesizeofour TungstenCarbideWaterjetNozzles asbelow φOD(mm)φID(mm)Length(mm)6.350.7676.26.351.0276.27.140.7676.27.141.0276.29.451.0276.29.5250.7676.29.5251.0276.27.141.02101.67.940.76101.67.941.02101.67.941.07101.6 Material: NanoCarbide/ultrafinegraintungstencarbideDensity: 15.7g/cm³Rockwellhardness: 96HRASize: asbelowandalsocancutomizeanysizeWelcometocontactustogetthesampletotestourwaterjetnozzlesgoodquality!PleaseletusknowtheclearsizeincludingOD,ID&length(mm). theuseofnozzle:MaxthewaterandabrasivetogetherforhighpressurecommingoutCommomproblems:JamandwearSolution:whenthereisjam,youmayinstallanotherendtotheon/offvalce,thenopen thehighpressurewater,theplugswillbewashed.Somesizeofour TungstenCarbideWaterjetNozzles asbelowSomesizeofour TungstenCarbideWaterjetNozzles asbelow
Tungsten carbide water jet nozzl
tungsten carbide waterjet nozzle inner tube is high finish blast hole, and use of our unique polishing technology pores to keep the hardness of inside waterjet nozzles is same as the outside of water jet nozzles. Comparing to other common tungsten waterjet nozzles:higher hardness, higher density, higher wear resistance, higher stability.Consistent and long service life. It is widely used for water jet cutting machine . We have many different size of the waterjet nozzle ,you just tell me the size of the nozzle or the brand of you waterjet ,then we can know the exact for you machine .ApplicationWater Jet Cutting is an industrial manufacturing technique that uses a very highly pressurized stream of water to cut through rubber, foam, plastics, leather, composites, stone, tile, metals, food, paper, aluminum, and more.The water stream is usually mixed with an abrasive powder, but pure water can be used when cutting softer materials.
Material: Nano Carbide / ultrafine grain tungsten carbide
Density: 15.7g/cm³
Rockwell hardness: 96HRA
Size: as below and also can cutomize any size
Welcome to contact us to get the sample to test our waterjet nozzles good quality!
Please let us know the clear size including OD,ID & length(mm).
Specifications of waterjet nozzles φOD(mm)
φID(mm)
Length(mm)
6.35
0.76
76.2
6.35
1.02
76.2
7.14
0.76
76.2
7.14
1.02
76.2
9.45
1.02
76.2
9.525
0.76
76.2
9.525
1.02
76.2
7.14
1.02
101.6
7.94
0.76
101.6
7.94
1.02
101.6
7.94
1.07
101.6
We accept customize as follow as your drawing and request.Abrasive Waterjet Nozzles are also called mixing tubes or focusing tubes which are mainly installed in waterjet cutting machine and they can cut materials such as metal, ceramic, stone, glass, and other materials. They are especially wear-resistant. In particular, when compressing water to 42,000 Psi and shoot it out of the nozzles, the water can cut inch-thick metal easily by using the aforementioned 42,000 Psi water jet laced with garnet abrasive.
