Tungsten carbide Rotary burr blank and finished product
Key words:
hard metal
Classification:
Rotary Burrs
- 产品描述
-
- Commodity name: Tungsten carbide Rotary burr blank and finished product
- Commodity ID: 1310963861095600128
Rotaryfileproductadvantages1,Carbiderotaryfileisfittermechanicalandchemicalessentialtools,itcanbeusedtoprocesscastiron,caststeel,carbonsteel,alloysteel,stainlesssteel,hardenedjustandcopperandaluminum.
Rotary file product advantages
1, Carbide rotary file is fitter mechanical and chemical essential tools, it can be used to process cast iron, cast steel, carbon steel, alloy steel, stainless steel, hardened just and copper and aluminum. High production efficiency, long service life. More than 300 times higher than the durability of grinding wheel, grinding wheel can replace the small handle.
2, can process a variety of metal mold cavity, clean up the iron, forging, welding parts flash, burrs and welds, chamfering of various parts, rounding and groove processing, repair parts of the impeller runner, cleaning pipe fine Processing machine parts bore surface, all kinds of metal and non-metallic carving process.

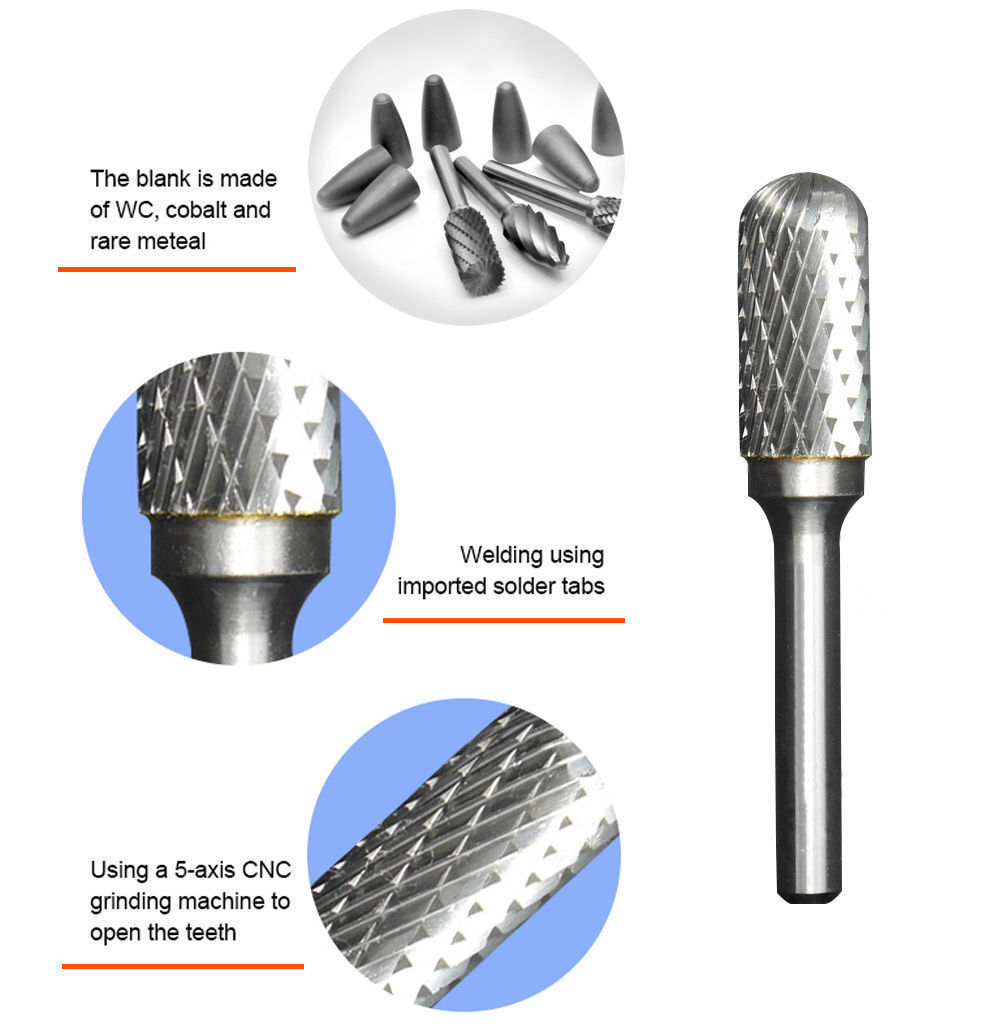

3, high-quality carbide (cutting part) plus medium carbon steel (matrix) manufacturing; with high strength, good wear resistance of the workpiece features.
4, the use of high-frequency automatic brazing technology, tensile strength> 200mpa; reference Taiwan secondary yuan measuring instrument on the tooth type for precise positioning and design, with sharp and other characteristics of groove anterior horn α = 3 ° -5 °, β = 10 ° -30 °

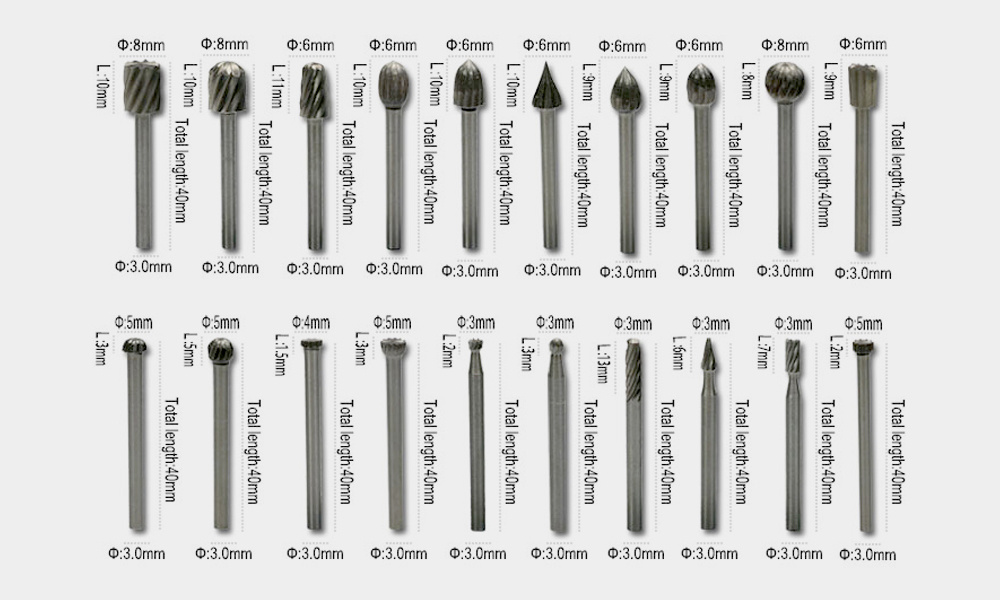

Product type/size
More Choice:

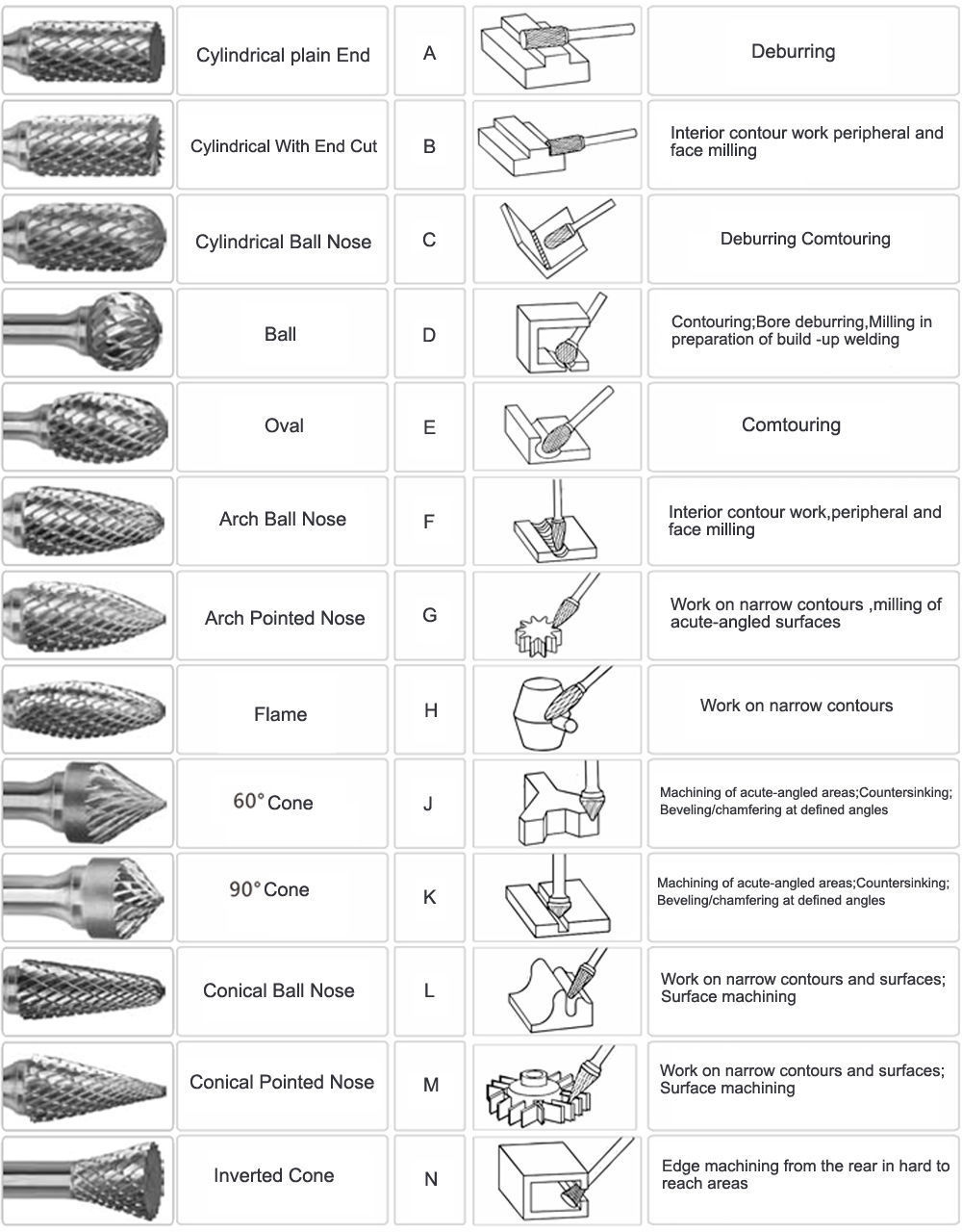

1. Tooth Type: From A TO Z
2. Tooth Form: standard tooth, gineral-purpose cutter tooth, coarse tooth, fine tooth, special cutter tooth, rhombic tooth, discontinuous chip cutter tooth, etc.
3. Tooth diameter: 3 mm~~16mm
4. Tooth length: 3mm~~36mm
5. Shank diameter: 6mm,6.35mm
6. Shank length: 45mm
Feature：
High speed rotate and high efficiency.
Clean, smooth finishing and good cutting quality.
Great for deburring, shaping, smoothing welds, enlarging holes, carving and finishing.
Processing for many kind of metal. Long lifetime.
Quality control:
1.All raw materials are tested in terms of density, hardness and TRS before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced
Product application:
Cemented carbide rotary file is widely used in machinery, automobile, ship, chemical industry, craft carving and other industrial sectors, with remarkable effect. Its main uses are:
-- Fine machining various metal mold cavities.-- All kinds of metal, non-metal carving, and carving of craft gifts.
--Clean the flash, burr and weld of castings, forgings and weldments
--Chamfering, rounding and groove processing of various mechanical parts, cleaning of pipes, and finishing of inner hole surfaces of mechanical parts
-- Polishing of impeller runner.
Key words:- Tungsten carbide Rotary burr blank and finished product
- carbide burrs
- Custom tungsten carbide burrs
