High wear resistance drawing die custom made tungsten carbide wire drawing dies wire guide carbide nibs
Key words:
hard metal
Classification:
Drawing die
- 产品描述
-
- Commodity name: High wear resistance drawing die custom made tungsten carbide wire drawing dies wire guide carbide nibs
- Commodity ID: 1310963749392896000

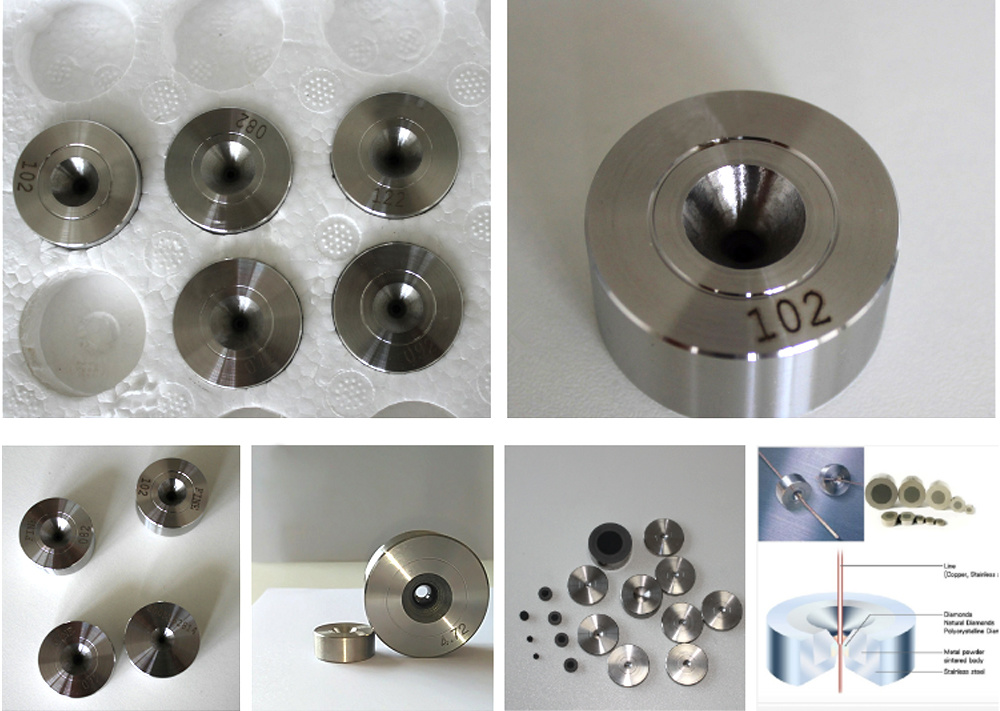

Tungsten carbide drawing dies are a wise economical choice for steel wire and other large_size wire drawing applications that make cost savings a priority over die wear resistance and wire surface finish. Cemented carbide drawing dies are used in wire drawing industries for drawing of different materials like Mild Steel (M.S), High Carbon (H.C), Stainless Steel (S.S), Brass, Aluminum, etc. All major wire producers use tungsten carbide drawing dies.
Tungsten carbide drawing dies are a wise economical choice for steel wire and other large-size wire drawing applications that make cost savings a priority over die wear resistance and wire surface finish.Cemented carbide drawing dies are used in wire drawing industries for drawing of different materials like mild steel (M.S), high carbon (H.C), stainless steel (S.S), brass, aluminum and more. All major wire producers use tungsten carbide drawing dies.Tungsten carbide drawing dies from Zhuzhou Huijin Cemented Carbide Co. Ltd, are composed by micro crystalline rare refractory metal carbide and high-purity cobalt powder for auxiliary metal or other metal powder as the binder. As a result of special production methods, and use of international advanced low pressure sintering furnace, the alloy is not only to maintain the original valued properties of tungsten carbide, and its performance increased by 1/4 than ordinary drawing die. At the same time, due to cobalt or other metal for cement, it becomes also tough.Grade ISO grade Grain size
(um)Binder density
(g/cm³)Hardness(HRA) T.R.S
(N/mm2)YG6A K20 0.8 6 ≥15.10 ≥91.5 ≥1580 YG6X K10 1.0 6 ≥15.00 ≥91.0 ≥1880 YG8 K30 1.5 8 ≥14.80 ≥89.5 ≥2020 YG12 K30-K40 1.5 12 ≥14.50 ≥88.0 ≥2600 YG15 K30-K40 1.5 15 ≥14.00 ≥87.0 ≥2900 YG20 1.0 20 ≥13.80 ≥86.0 ≥2600 Application：Tungsten Carbide Drawing Molding Die apply to Wire and cable, aluminum wire, ladle steel wire, ladle copper wire, steel wire rope,high carbon steel wire, stainless steel wire, nickel wire, chrome wire, copper clad steel wire, cutting wire, steel cord, welding wire, copper pipe , stainless steel tube, etc.
Our Advantages:1.Professional manufacture for tungsten carbide with more than 15 years experience. All prodycts have passed the ISO9001 certifications.2.we have our own factory to produce the molds and products, so the delivery is fast. Also we have the professional sales teams to satisfy you well.3.All products go throught in-process and final inspection. Strictly and complete quality control system.4.Made from 100% vrigin material, stable and reliable quality.5.We can accept order of all kinds of special designed products of tungsten carbide.6.Various payment terms and delivery methods supported.7.Sample and free online technical servic is available.
Key words:- High wear resistance drawing die custom made tungsten carbide wire drawing dies wire guide
