High Hardness Tungsten carbide thin plate for cutting tool
High Hardness Tungsten carbide plate for cutting tool
tungsten carbide thin plates used to make metal and wood cutters: Tungsten carbide finished plate with high hardness, high wear resistance, high T.R.S. and toughness, heat resistance, corrosion resistance and a series of excellent performance, especially the high hardness and wear resistance,even if the temperature at 500 degrees also remained unchanged.
Key words:
hard metal
Classification:
Plates
- 产品描述
-
- Commodity name: High Hardness Tungsten carbide thin plate for cutting tool
- Commodity ID: 1310963732720537600
High Hardness Tungsten carbide plate for cutting tool tungsten carbide thin plates used to make metal and wood cutters: Tungsten carbide finished plate with high hardness, high wear resistance, high T.R.S. and toughness, heat resistance, corrosion resistance and a series of excellent performance, especially the high hardness and wear resistance,even if the temperature at 500 degrees also remained unchanged.
High Hardness Tungsten carbide plate for cutting tooltungsten carbide thin plates used to make metal and wood cutters: Tungsten carbide finished plate with high hardness, high wear resistance, high T.R.S. and toughness, heat resistance, corrosion resistance and a series of excellent performance, especially the high hardness and wear resistance,even if the temperature at 500 degrees also remained unchanged.Features of Tungsten Carbide Finished Plate tungsten carbide finished plate1, Excellent thermal stability and high resistance to deformation;2, In the high temperature with high mechanical temperature;3, Good thermal shock resistance;4, High thermal conductivity;5, Excellent oxidation control;6, High corrosion resistance at high temperatures;7, Excellent anti-chemical corrosion resistance;8, High wear resistance;9, Long life.
Material grade of tungsten carbide plates Grade Density g/cm3 Hardnes HRA T.R.S Mpa Performance&application recommended HY6A 14.85 92.5 2000 Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,
wear-resistant parts etc.HY8 14.7 89.8 2800 High bending strength,wear resistance lower than YG6A, suitable for manufacturing
cutter ,wear-resistant parts etc.HY11 14.4 88.5 2900 High bending strength,wear resistance lower than YG6A, suitable for manufacturing
cutter ,wear-resistant parts etc.HY15 14 87 3000 Suitable for manufacturing punching dies, wear-resistant parts. HY20 13.5 85.5 2800 High bending strength,suitable for manufacturing progressive dies and other
punching dies.HY25 13.1 81.5 2950 High bending strength,wear resistance lower than YM6A, suitable for manufacturing
cutter ,wear-resistant parts etc.HY2T 14.25 92 2500 Fine grain alloy, with high wear resistance, bending strength, bonding resistance
and thermal strength. it is suitable for machining refractory alloys,stainless steel,
high manganese steel, etc.It is very important to select the right grade to match the using purpose, we have to consider the physical properties of the processing object, also the working

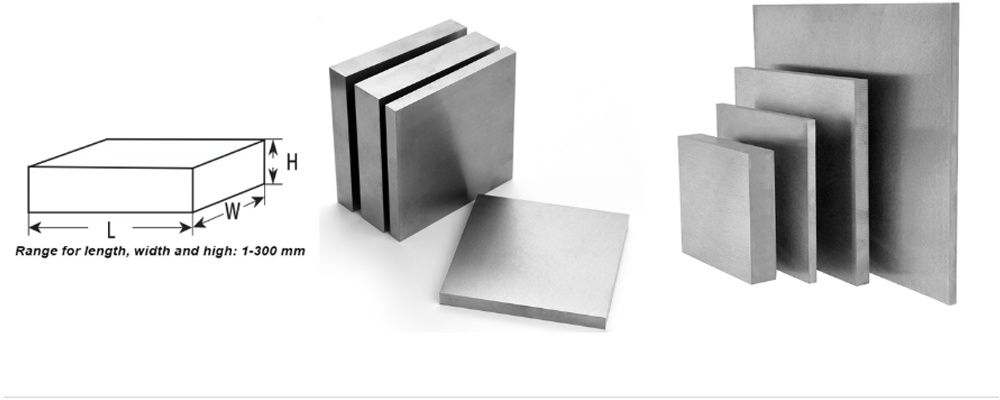

condition for tools, like running speed, impact. Other grades can be offered as per customers'requirements.Size of tungsten carbide plates length(mm)(tol.±2.2) wide(mm)(tol.±2.2) thickness(mm)(tol.±0.35) 50 50 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 70 70 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 100 50 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 100 100 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 100 120 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 100 150 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 105 105 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 125 150 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 150 200 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 200 250 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. 300 300 1, 2.15, 2.5, 3, 3.5 , 4, 4.5, 5, 5.5, 6…. Key words:- Tungsten carbide thin plate for cutting tool
- Carbide Plates for Making Plane Cutters and Broaches
