Extra long Tungsten carbide strips
Key words:
hard metal
Classification:
Strips
- 产品描述
-
- Commodity name: Extra long Tungsten carbide strips
- Commodity ID: 1310963821950160896

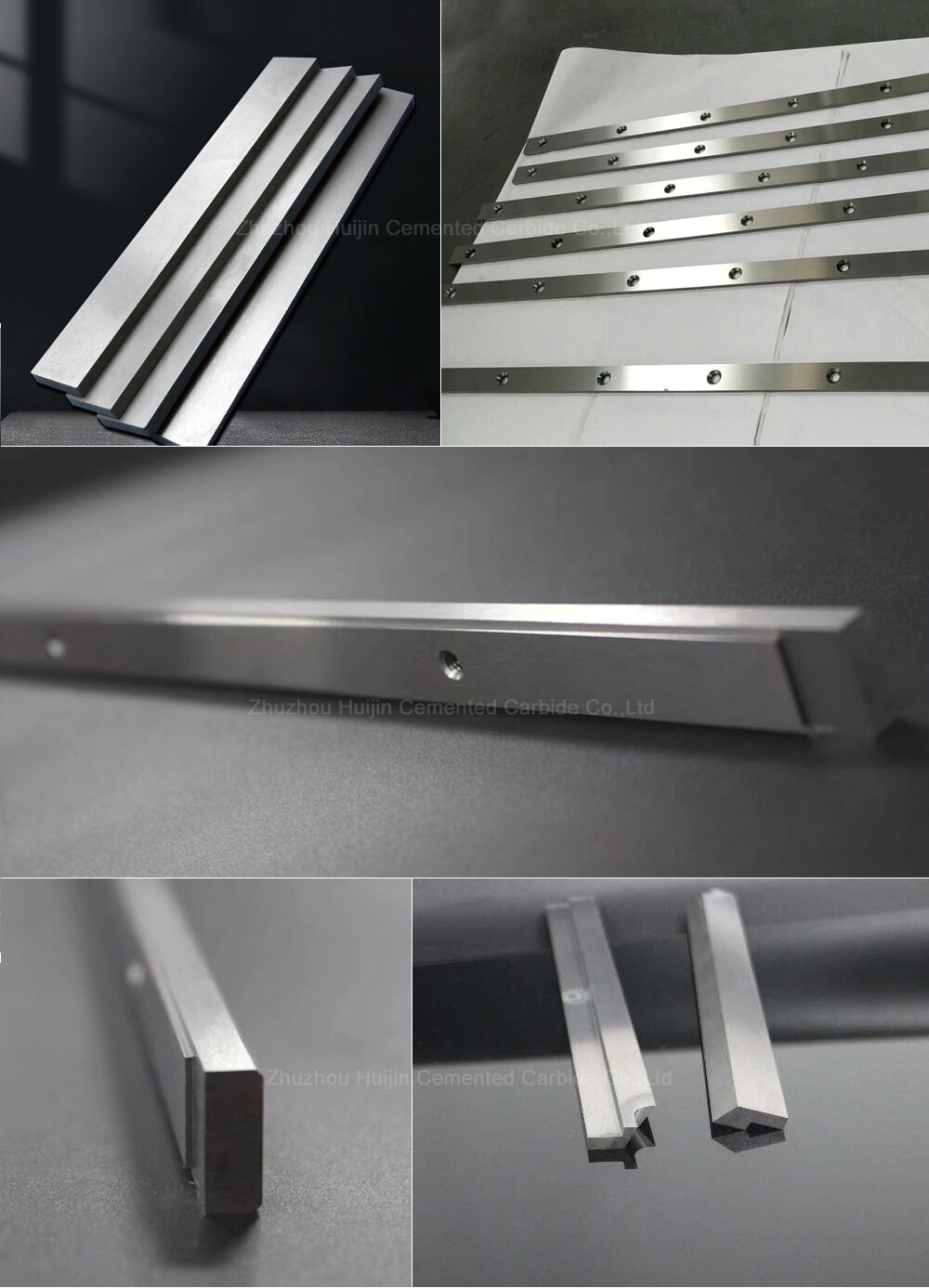

Tungsten carbide strips, We provide a wide range of squared and flat Carbide Strips in different dimensions, minimum 1.0 mm thickness. Also, we have rich experience for making customized strips, like the strips with single cutting angle, double cutting angles, strips with cutting angles and also holes.
Product feature:
1.Easy to be brazed, good wear resistance and toughness.
2. Untrafine grain size raw material to keep excellent strength and hardness.3.Both standard sizes and customizes sizes are available.
4. 100% use virgin raw materials, our constant is quality in every order we produce, large or small
5. Both blank and finely ground are available.

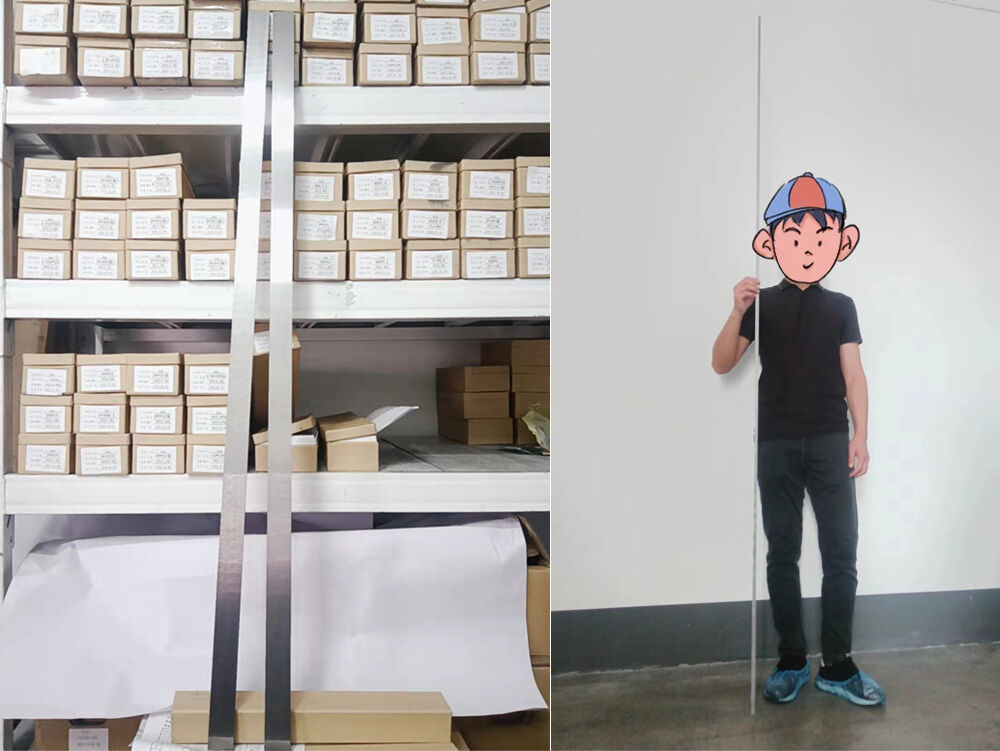

6.Maximum length to 2300mm,T:0.5mm W : 80mm,full range sizes,support customication.
Material:
WC + CO, WC+ NI...Dimensions and Tolerance (mm) length(mm) telrance Width(mm) Tolerance H Tolerance <=80 +0/+1.6 <=10 +0/+0.5 <=3.0 +0/+0.3 >80~100 +0/+2.5 >10~20 +0/+0.6 >3~5 +0/+0.4 >100~150 +0/+3.0 >20~30 +0/+0.6 >5~8 +0/0.5 >150~200 +0/+4.0 >30~40 +0/+1.0 >8~10 +0/+0.8 >200~300 +0/+5.0 >50 +0/+1.5 >10 +0/+0.8 >300 +0/+6.0 ---- ---- ---- ---- Please contact us for special sizes and minimum order quantity. Good grinding machine to ensure the sphencity & the Linearity of rod at higher level standard; Grade ,properties and application of cemented carbide strips Grade Density (g/cm³） Hardness （HRA） T.R.S MPa Performance & spplication recommended HY6 14.9 90.5 2400 Good wear resistance ,suitable for machining hard wood,raw wood,aluminum section bar,brass rod and cast iron. HY6A 14.85 92.5 2000 wear resistance higher than HY6,suitable for machining hard wood,raw wood,aluminum section bar,brass rod and cast iron. HY8 14.7 89.8 2800 High wear and impact resistance,suitable for machining dry wood,soft wood and non-ferrous mK20etal section bar. HY2T 14.25 92.0 2400 Fine grain alloy,with high wear resistance,bending strength,bonding resistance and thermal strength . It is suitable for machining refractory alloys,stainless steel,high manganese steel,etc. HS25 13.0 91.0 2200 wear resistance and strength comparatively higher ,suitable for machining cast iron,non-ferrous metal and non-metallid materials. HY10 14.45 91.8 3000 wear resistance and strength comparatively higher ,suitable for machining cast iron,non-ferrous metal and non-metallid materials. Other grades and size can be offered as per customer's requirements Extra long custom Tungsten carbide strip
Advantages:1. We are a professional tungsten carbide manufacturer in Zhuzhou city over 15+ years and have a few senior engineers who specializes in tungsten carbide field for many decades2. Recommended grade: YG6(K10)/YG6X YN6X YG8(K20)/YG15(K30), we can research and develop more suitable formula according to use condition and processing characteristics for client.3. For your non-standard parts, we have strong ability to make mold by ourselves and produce them per your requirements4. We have strict quality control and assurance system to guarantee the consistent qualityWe provide a wide range of squared and flat Carbide Strips in different dimensions, minimum 1.0 mm thickness.
Also, we have rich experience for making customized strips, like the strips with single cutting angle, double cuttingangles, strips with cutting angles and also holes.Applications:

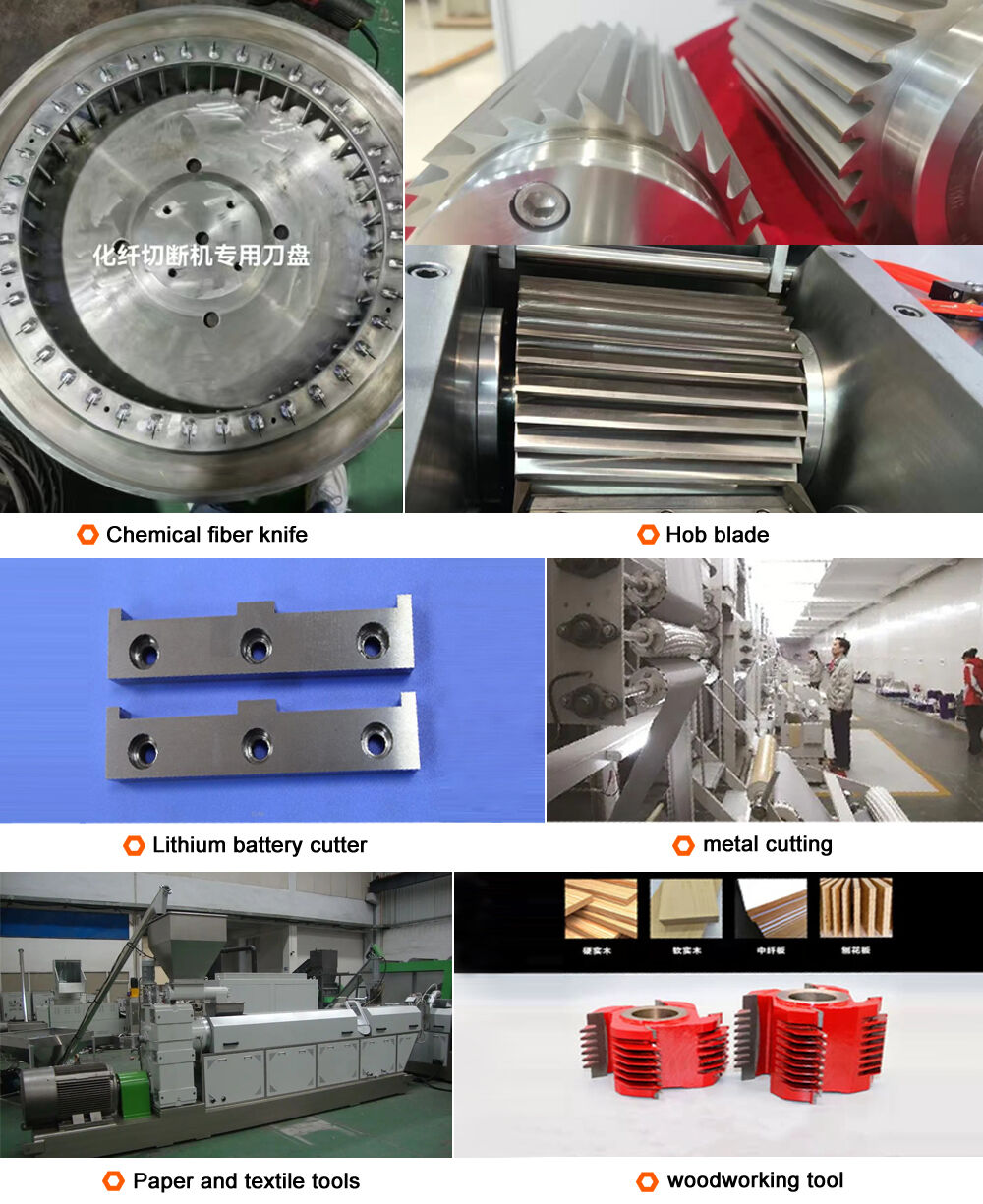

The main using purpose of cemented carbide strips is to make cutting tools for woodworking, like forming tools and different kinds of blades to cut natural wood, HDF, MDF, Ply wood, Particle board and some non-metal material.It is very important to select the right grade to match the using purpose, we have to consider the physical properties of the processing object, also the working condition for tools, like running speed, impact.
Professional precision machining
There are many kinds of machining methods for carbide precision machining. Such as EDM, slow wire cutting, CNC milling,
CNC lathe processing,etc.Our company is a professional manufacturer of cemented carbide integrating production and precision

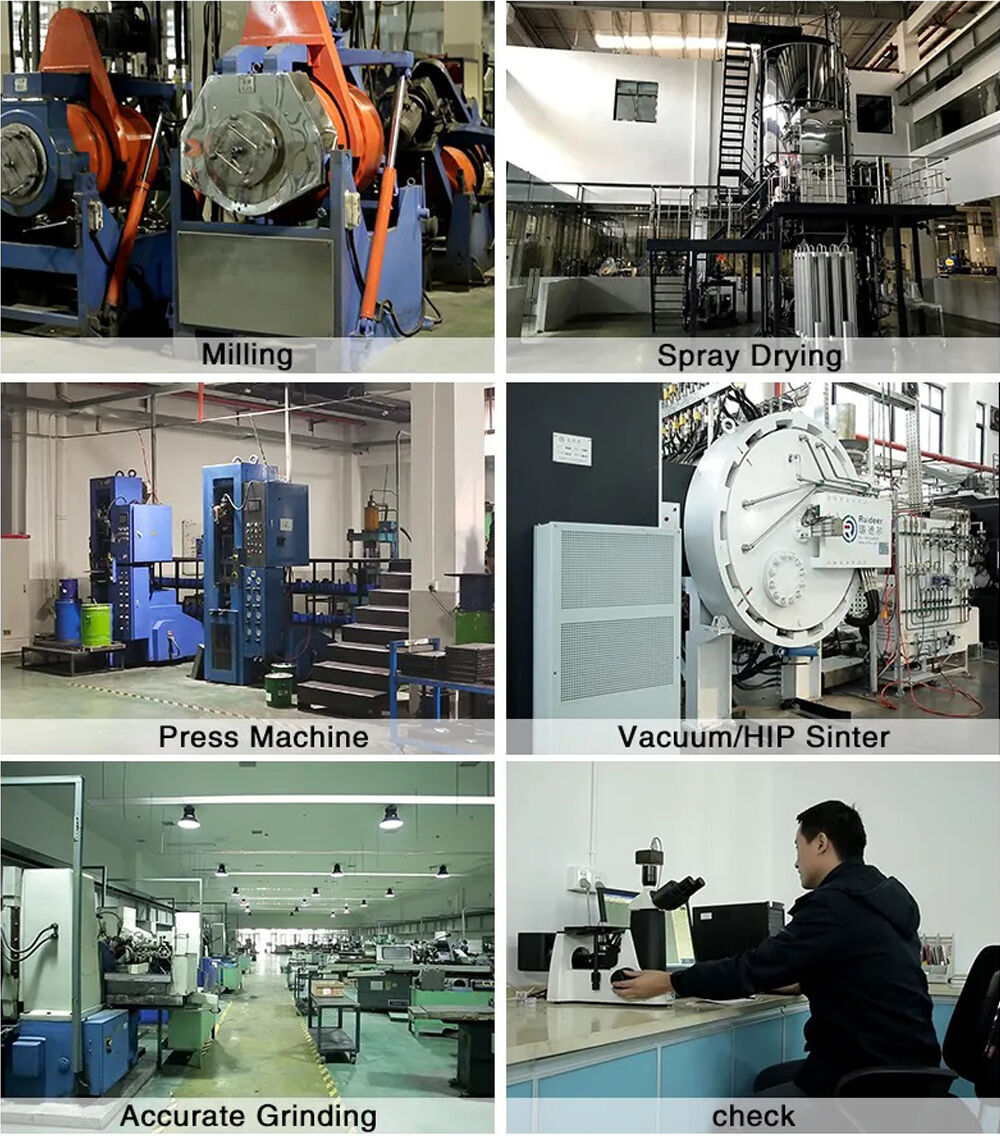

machining. The company has advanced production and processing equipment such as turning and milling compound machining center,
five-axis machining center, four-axis vertical machining center, CNC horizontal boring and milling machine, deep hole drilling,
boring and honing, vacuum sintering furnace, wire cutting, etc. Processing supporting capacity. It has very strong strength in the
precision machining of cemented carbide, and is equipped with various advanced machining equipment, which is suitable for the
machining of various high-precision, special materials, eccentric inner shape, elbows, and complex geometric parts.
product packaging：
Key words:- Tungsten carbide strips
- carbide bars
- carbide flat strips
- Extra long custom tungsten carbide strips
- Custom cemented carbide strip
